AW-CP5800-6
- Band: 5.2-5.9 GHz
- Gain: 6 dBi
- Polarization: Linear
- Connector: IPEX MHF (U.FL)
- Impedance: 50 Ω
Ceramic Patch Antenna
High-dielectric ceramic patch elements for GNSS and short-range links, reflow-mountable or supplied with an LNA and coaxial pigtail.
AW-CP-GPS-2525
- Band: 1.6-1.6 GHz
- Gain: 4 dBi
- Polarization: RHCP
- Connector: Solder pad
- Impedance: 50 Ω
AW-CP-GPS-1818
- Band: 1.6-1.6 GHz
- Gain: 3 dBi
- Polarization: RHCP
- Connector: Solder pad
- Impedance: 50 Ω
AW-CP-GPS-1212
- Band: 1.6-1.6 GHz
- Gain: 2 dBi
- Polarization: RHCP
- Connector: Solder pad
- Impedance: 50 Ω
AW-CP-GPS-2525A
- Band: 1.6-1.6 GHz
- Gain: 28 dBi
- Polarization: RHCP
- Connector: IPEX MHF (U.FL)
- Impedance: 50 Ω
AW-CP-BD-2535
- Band: 1.6-1.6 GHz
- Gain: 28 dBi
- Polarization: RHCP
- Connector: IPEX MHF (U.FL)
- Impedance: 50 Ω

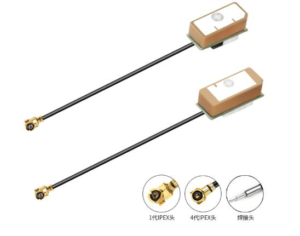

AW-CP-BD-MINI-1212
- Band: 1.6-1.6 GHz
- Gain: 2 dBi
- Polarization: RHCP
- Connector: Solder pad
- Impedance: 50 Ω
AW-CP2400-4
- Band: 2.4-2.5 GHz
- Gain: 4 dBi
- Polarization: Linear
- Connector: IPEX MHF (U.FL)
- Impedance: 50 Ω
