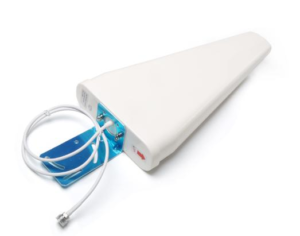

AW-LP4386-13
- Band: 430-860 MHz
- Gain: 13 dBi
- Polarization: Vertical
- Connector: N-Female
- Impedance: 50 Ω
Log-Periodic Antenna
Frequency-independent directional arrays whose element lengths scale geometrically, giving usable gain and front-to-back ratio across a decade of bandwidth in one aperture.
AW-LP0827-9
- Band: 0.8-2.7 GHz
- Gain: 9 dBi
- Polarization: Vertical
- Connector: N-Female
- Impedance: 50 Ω
AW-LP0827-11
- Band: 0.7-2.7 GHz
- Gain: 11 dBi
- Polarization: Vertical
- Connector: N-Female
- Impedance: 50 Ω
AW-LP0838-12
- Band: 0.8-3.8 GHz
- Gain: 12 dBi
- Polarization: Vertical
- Connector: N-Female
- Impedance: 50 Ω

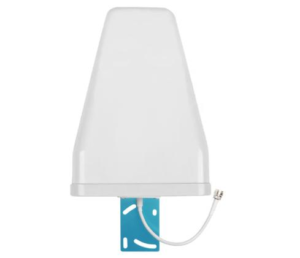

AW-LP1727-10
- Band: 1.7-2.7 GHz
- Gain: 10 dBi
- Polarization: Vertical
- Connector: N-Female
- Impedance: 50 Ω
AW-LP0858-2x11
- Band: 0.8-5.8 GHz
- Gain: 2x11 dBi
- Polarization: Dual ±45° slant
- Connector: N-Female
- Impedance: 50 Ω
