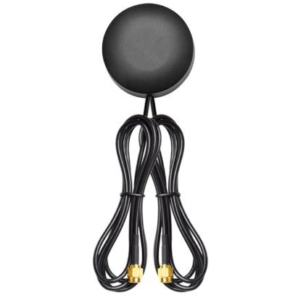

AW-CMB-2-4GGPS
- Band: 0.7-2.7 GHz
- Gain: 3 / 28 dBi
- Polarization: Vertical + RHCP
- Connector: SMA-Male + SMA-Male
- Impedance: 50 Ω
Combination Multi-System Antenna
Single-housing assemblies that carry two or more independent elements — typically cellular plus GNSS, or cellular plus Wi-Fi — with one pigtail per system.
AW-CMB-3-4GGPSWIFI
- Band: 0.7-5.9 GHz
- Gain: 3 / 28 / 4 dBi
- Polarization: Vertical + RHCP
- Connector: SMA-Male ×3
- Impedance: 50 Ω
AW-CMB-5-5GGPSWIFI
- Band: 0.6-5.9 GHz
- Gain: 4x4 / 28 / 2x5 dBi
- Polarization: Vertical + RHCP
- Connector: SMA-Male ×7
- Impedance: 50 Ω

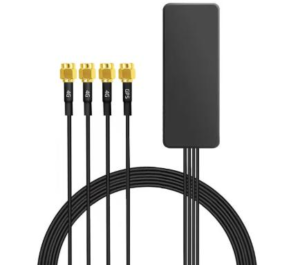

AW-CMB-4-MIMOGPS
- Band: 0.7-2.7 GHz
- Gain: 2x3 / 28 dBi
- Polarization: Vertical / MIMO + RHCP
- Connector: SMA-Male ×3
- Impedance: 50 Ω
AW-CMB-2-WIFIBT
- Band: 2.4-5.9 GHz
- Gain: 2x4 dBi
- Polarization: Linear / MIMO
- Connector: IPEX MHF (U.FL) ×2
- Impedance: 50 Ω
Not sure which antenna or cable you need?
Use the configurator to get a matched recommendation based on your frequency, gain, polarization and mounting requirements.
