AW-TV-IN-6 174-862 MHz TV / Broadcast Antenna (6 dBi)

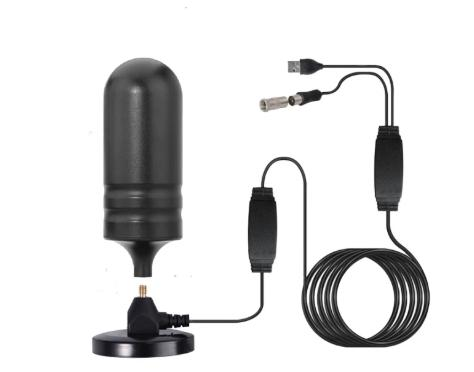

174-862 MHz tv / broadcast antenna — 6 dBi gain, horizontal polarization, F-Female connector.
AW-TV-IN-6 — 174-862 MHz, tv / broadcast antenna
AW-TV-IN-6 specifications
Model
AW-TV-IN-6
Frequency Range
174–862 MHz
Gain
6 dBi
Polarization
Horizontal
Half-Power Beamwidth
80° (H) × 70° (V)
Dimensions
320 × 240 × 20 mm
Connector
F-Female
Impedance
75 Ω
VSWR
≤ 2.5:1
Power Handling
5 W
Ingress Protection
IP40
Material / Radome
Flat PET film / amplified feed
The AW-TV-IN-6 is a 174-862 MHz tv / broadcast antenna engineered for terrestrial broadcast reception. It delivers 6 dBi of gain with horizontal polarization, making it a dependable choice where consistent 174-862 MHz performance is required.
Radiation Pattern and Gain
The half-power beamwidth is approximately 80 degrees in azimuth by 70 degrees in elevation, concentrating radiated energy toward the intended service area and improving signal-to-noise ratio at the cell edge. The rated gain of 6 dBi is referenced to an isotropic radiator.
Mechanical and Electrical Specifications
Mechanically, the AW-TV-IN-6 measures 320 x 240 x 20 mm and is housed in a Flat PET film / amplified feed. The standard interface is a F-Female connector, with a nominal impedance of 75 ohms and a typical VSWR of 2.5:1 or better. The element withstands up to 5 W of input power.
Installation Guidance
The recommended installation is indoor, wall-mounted. The enclosure carries an IP40 environmental rating for outdoor exposure. For best results, mount the antenna with clear line of sight to the served area and bond all outdoor hardware to a proper grounding system.
Typical Applications
Terrestrial Broadcast Reception
Request a Quote
Need this antenna with a custom connector, cable length, or radome color? Use the antenna configurator to confirm the specification and submit an inquiry for AW-TV-IN-6.
Advanced filters (dimension limits)
Frequently Asked Questions
What is a tv / broadcast antenna used for?
VHF and UHF terrestrial television receive antennas for DVB-T, DVB-T2, ATSC and ISDB-T reception.
Is AW-TV-IN-6 suitable for terrestrial broadcast reception?
Yes. AW-TV-IN-6 is well matched to terrestrial broadcast reception deployments, where its radiation pattern and gain provide reliable coverage and link margin.
Can the connector on AW-TV-IN-6 be changed?
Yes. The default RF interface can be supplied as SMA, N-type, TNC, or other connectors on request, and custom cable assemblies are available. Specify your interface in the inquiry form.
What is the standard impedance and VSWR of AW-TV-IN-6?
The nominal impedance is 50 ohms with a typical VSWR of 1.5:1 or better across the operating band. A 75 ohm option can be quoted for broadcast applications.
How do I request a quote for AW-TV-IN-6?
Use the antenna configurator on this page to confirm the specification, then submit the inquiry form. An engineer from astronwireless.com will respond within one business day.
