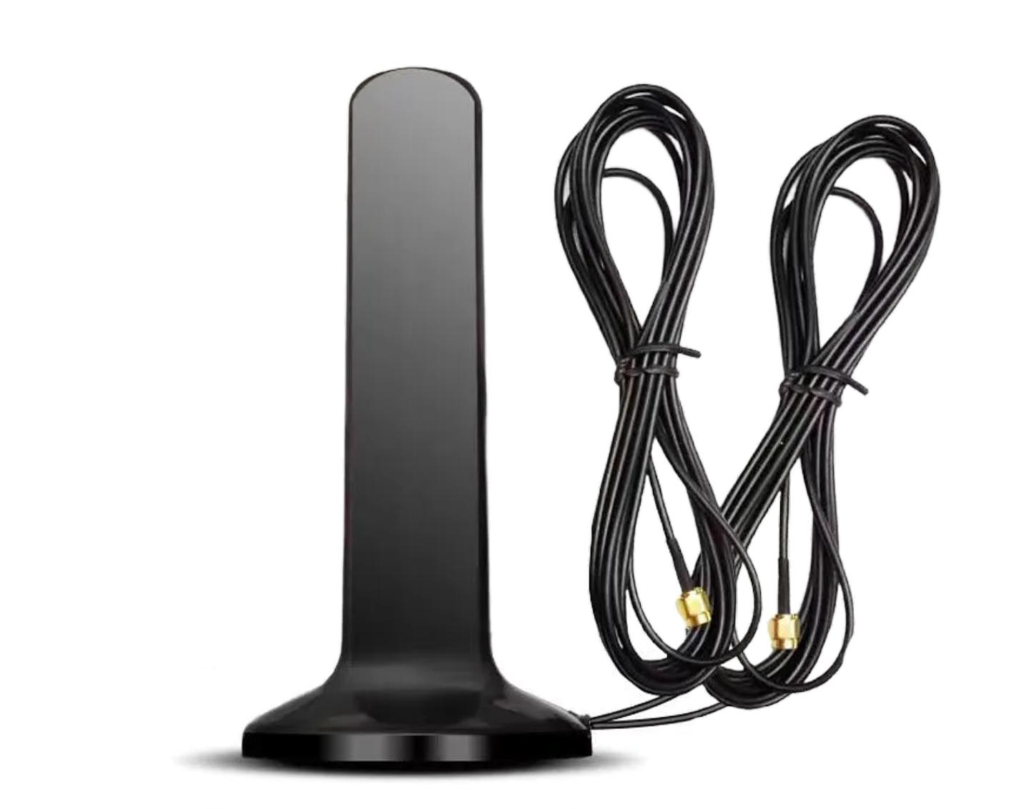

AW-SCD0827-2×3 0.7-2.7 GHz Suction-Cup Antenna (2×3 dBi)

Designed for router / dtu / gateway, the AW-SCD0827-2×3 is a 0.7-2.7 GHz suction-cup antenna rated at 2×3 dBi. Its vertical / mimo polarization and tuned matching network keep return loss low across the full operating band.

Radiation Pattern and Gain

As an omnidirectional radiator, it provides a full 360 degree azimuth pattern with an approximate 55 degree elevation beamwidth, distributing energy evenly around the mast. The rated gain of 2×3 dBi is referenced to an isotropic radiator.

Mechanical and Electrical Specifications

Mechanically, the AW-SCD0827-2×3 measures 200 x 110 x 60 mm and is housed in a Sail-profile ABS / rubber suction base. The standard interface is a SMA-Male connector, with a nominal impedance of 50 ohms and a typical VSWR of 2.0:1 or better. The element withstands up to 25 W of input power.

Multi-Port Configuration

This model is supplied as a 2-port assembly, enabling spatial diversity or MIMO operation. Each port presents an independent 50 ohm feed.

Installation Guidance

The recommended installation is vehicle or window, suction cup. The enclosure carries an IP65 environmental rating for outdoor exposure. For best results, mount the antenna with clear line of sight to the served area and bond all outdoor hardware to a proper grounding system.

Typical Applications

• Router / DTU / Gateway
• Telematics / V2X
• Vehicle-Mounted

Request a Quote

Need this antenna with a custom connector, cable length, or radome color? Use the antenna configurator to confirm the specification and submit an inquiry for AW-SCD0827-2×3.
