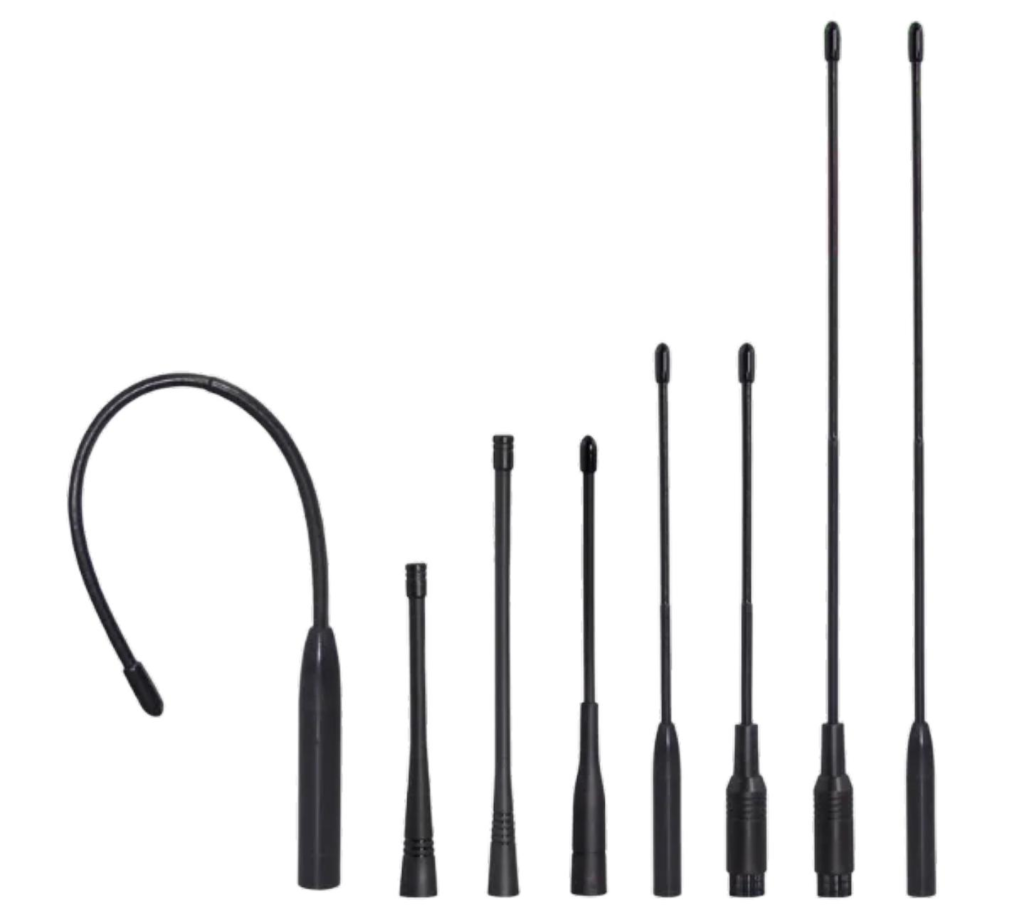

AW-GN0827-3 is a 3 dBi gooseneck / blade whip antenna covering 0.7-2.7 GHz. With vertical polarization and a rugged build, it suits router / dtu / gateway installations in both temperate and harsh outdoor environments.
Radiation Pattern and Gain
As an omnidirectional radiator, it provides a full 360 degree azimuth pattern with an approximate 60 degree elevation beamwidth, distributing energy evenly around the mast. The rated gain of 3 dBi is referenced to an isotropic radiator.
Mechanical and Electrical Specifications
Mechanically, the AW-GN0827-3 measures 190 x 14 x 14 mm and is housed in a TPE jacket / articulated brass spine. The standard interface is a SMA-Male connector, with a nominal impedance of 50 ohms and a typical VSWR of 2.0:1 or better. The element withstands up to 10 W of input power.
Installation Guidance
The recommended installation is desktop / handheld. The enclosure carries an IP40 environmental rating for outdoor exposure. For best results, mount the antenna with clear line of sight to the served area and bond all outdoor hardware to a proper grounding system.
Typical Applications
Router / DTU / Gateway
IoT / M2M
Handheld Radio
Request a Quote
Need this antenna with a custom connector, cable length, or radome color? Use the antenna configurator to confirm the specification and submit an inquiry for AW-GN0827-3.
Advanced filters (dimension limits)
Frequently Asked Questions
What is a gooseneck / blade whip antenna used for?
Articulated and blade-profile whips that fold flat against a device and can be aimed by hand, used on routers, DTUs and portable terminals.
Is AW-GN0827-3 suitable for router / dtu / gateway?
Yes. AW-GN0827-3 is well matched to router / dtu / gateway deployments, where its radiation pattern and gain provide reliable coverage and link margin.
Can the connector on AW-GN0827-3 be changed?
Yes. The default RF interface can be supplied as SMA, N-type, TNC, or other connectors on request, and custom cable assemblies are available. Specify your interface in the inquiry form.
What is the standard impedance and VSWR of AW-GN0827-3?
The nominal impedance is 50 ohms with a typical VSWR of 1.5:1 or better across the operating band. A 75 ohm option can be quoted for broadcast applications.
How do I request a quote for AW-GN0827-3?
Use the antenna configurator on this page to confirm the specification, then submit the inquiry form. An engineer from astronwireless.com will respond within one business day.
Accessories & Components
Complete your installation with matched RF cables, connectors, mounts, adapters and bulk coaxial cable. Custom assemblies, lengths and interfaces are available on request.
