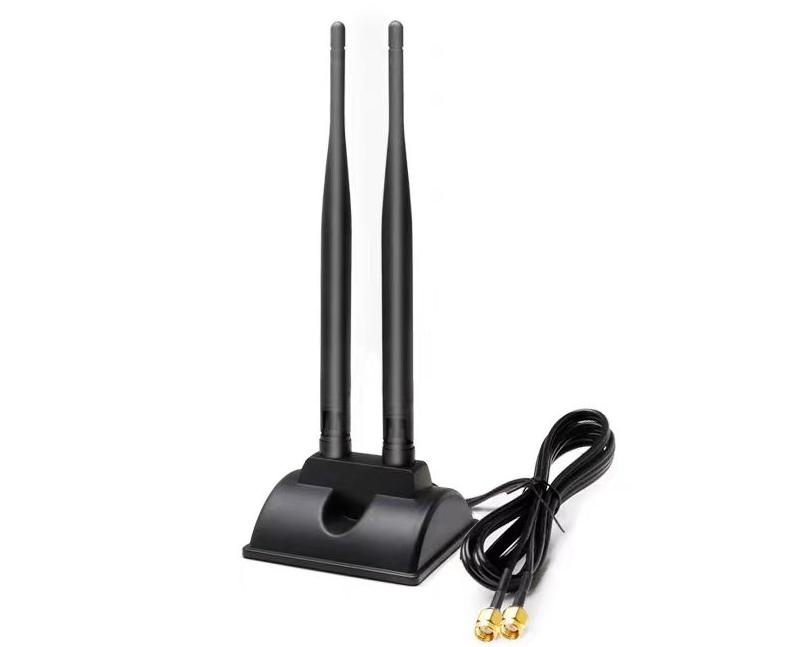

The AW-DT0858-2×4 is a 0.8-5.9 GHz desktop terminal antenna engineered for router / dtu / gateway. It delivers 2×4 dBi of gain with vertical / mimo polarization, making it a dependable choice where consistent 0.8-5.9 GHz performance is required.
Radiation Pattern and Gain
As an omnidirectional radiator, it provides a full 360 degree azimuth pattern with an approximate 50 degree elevation beamwidth, distributing energy evenly around the mast. The rated gain of 2×4 dBi is referenced to an isotropic radiator.
Mechanical and Electrical Specifications
Mechanically, the AW-DT0858-2×4 measures 240 x 110 x 70 mm and is housed in a Weighted ABS base / dual TPE whips. The standard interface is a SMA-Male connector, with a nominal impedance of 50 ohms and a typical VSWR of 2.0:1 or better. The element withstands up to 10 W of input power.
Multi-Port Configuration
This model is supplied as a 2-port assembly, enabling spatial diversity or MIMO operation. Each port presents an independent 50 ohm feed.
Installation Guidance
The recommended installation is desktop / handheld. The enclosure carries an IP40 environmental rating for outdoor exposure. For best results, mount the antenna with clear line of sight to the served area and bond all outdoor hardware to a proper grounding system.
Typical Applications
Router / DTU / Gateway
Wi-Fi 5 / Wi-Fi 6
5G NR Sub-6 GHz
Request a Quote
Need this antenna with a custom connector, cable length, or radome color? Use the antenna configurator to confirm the specification and submit an inquiry for AW-DT0858-2×4.
Advanced filters (dimension limits)
Frequently Asked Questions
What is a desktop terminal antenna used for?
Weighted-base indoor antennas with a captive cable, used with routers, gateways and test benches where a mast is impractical.
Is AW-DT0858-2x4 suitable for router / dtu / gateway?
Yes. AW-DT0858-2x4 is well matched to router / dtu / gateway deployments, where its radiation pattern and gain provide reliable coverage and link margin.
Can the connector on AW-DT0858-2x4 be changed?
Yes. The default RF interface can be supplied as SMA, N-type, TNC, or other connectors on request, and custom cable assemblies are available. Specify your interface in the inquiry form.
What is the standard impedance and VSWR of AW-DT0858-2x4?
The nominal impedance is 50 ohms with a typical VSWR of 1.5:1 or better across the operating band. A 75 ohm option can be quoted for broadcast applications.
How do I request a quote for AW-DT0858-2x4?
Use the antenna configurator on this page to confirm the specification, then submit the inquiry form. An engineer from astronwireless.com will respond within one business day.
Accessories & Components
Complete your installation with matched RF cables, connectors, mounts, adapters and bulk coaxial cable. Custom assemblies, lengths and interfaces are available on request.
