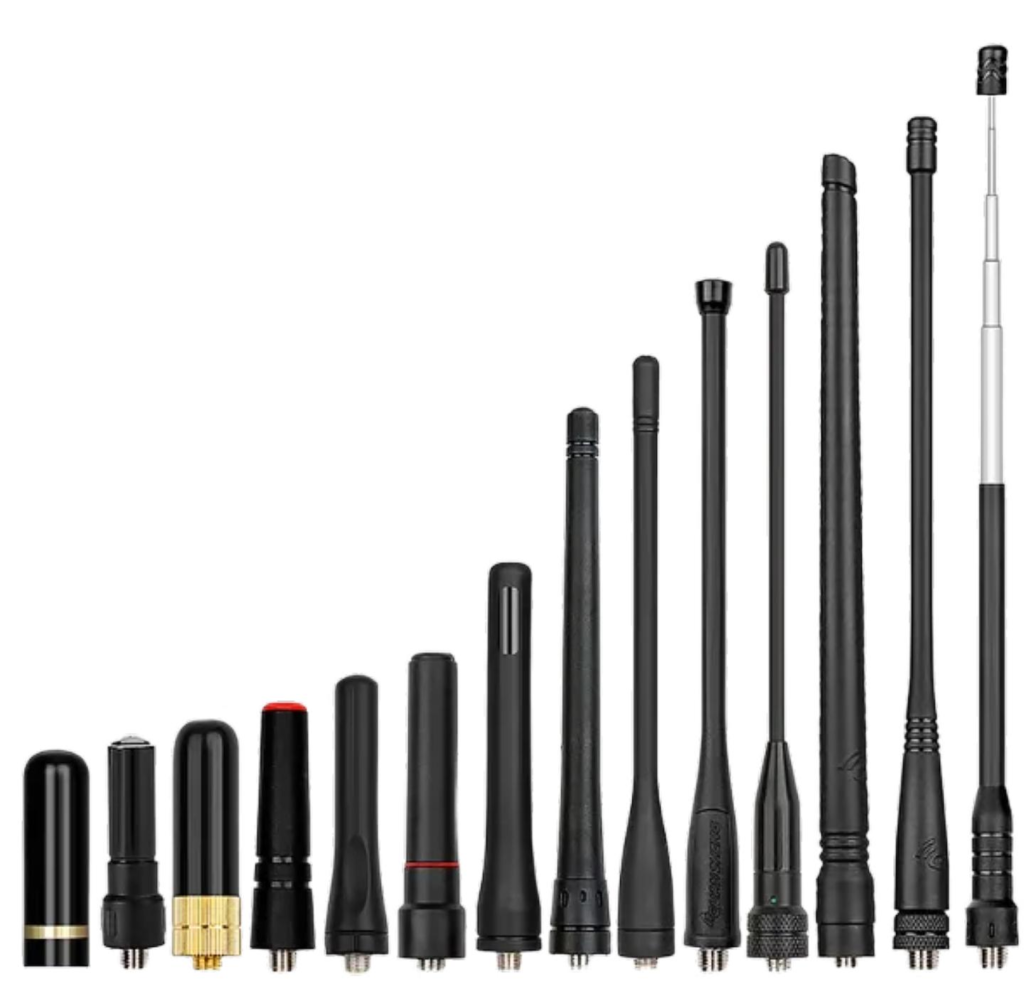

AW-HH0136-2 136-174 MHz Handheld Radio Antenna (2 dBi)
136-174 MHz handheld radio antenna — 2 dBi gain, vertical polarization, SMA-Female connector.
AW-HH0136-2 — 136-174 MHz, handheld radio antenna
AW-HH0136-2 specifications
Model
AW-HH0136-2
Frequency Range
136–174 MHz
Gain
2 dBi
Polarization
Vertical
Half-Power Beamwidth
360° (H) × 60° (V)
Dimensions
175 × 13 × 13 mm
Connector
SMA-Female
Impedance
50 Ω
VSWR
≤ 2.0:1
Power Handling
10 W
Ingress Protection
IP54
Material / Radome
TPE jacket / helical radiator
Operating across 136-174 MHz, the AW-HH0136-2 handheld radio antenna provides 2 dBi gain and vertical polarization. The design targets public safety / land mobile radio deployments that demand reliable coverage and stable impedance matching.
Radiation Pattern and Gain
As an omnidirectional radiator, it provides a full 360 degree azimuth pattern with an approximate 60 degree elevation beamwidth, distributing energy evenly around the mast. The rated gain of 2 dBi is referenced to an isotropic radiator.
Mechanical and Electrical Specifications
Mechanically, the AW-HH0136-2 measures 175 x 13 x 13 mm and is housed in a TPE jacket / helical radiator. The standard interface is a SMA-Female connector, with a nominal impedance of 50 ohms and a typical VSWR of 2.0:1 or better. The element withstands up to 10 W of input power.
Installation Guidance
The recommended installation is desktop / handheld. The enclosure carries an IP54 environmental rating for outdoor exposure. For best results, mount the antenna with clear line of sight to the served area and bond all outdoor hardware to a proper grounding system.
Typical Applications
Public Safety / Land Mobile Radio
Handheld Radio
Mining and Tunnel Coverage
Request a Quote
Need this antenna with a custom connector, cable length, or radome color? Use the antenna configurator to confirm the specification and submit an inquiry for AW-HH0136-2.
Advanced filters (dimension limits)
Frequently Asked Questions
What is a handheld radio antenna used for?
Replacement whip and stubby antennas for two-way portable radios in the VHF and UHF land-mobile bands.
Is AW-HH0136-2 suitable for public safety / land mobile radio?
Yes. AW-HH0136-2 is well matched to public safety / land mobile radio deployments, where its radiation pattern and gain provide reliable coverage and link margin.
Can the connector on AW-HH0136-2 be changed?
Yes. The default RF interface can be supplied as SMA, N-type, TNC, or other connectors on request, and custom cable assemblies are available. Specify your interface in the inquiry form.
What is the standard impedance and VSWR of AW-HH0136-2?
The nominal impedance is 50 ohms with a typical VSWR of 1.5:1 or better across the operating band. A 75 ohm option can be quoted for broadcast applications.
How do I request a quote for AW-HH0136-2?
Use the antenna configurator on this page to confirm the specification, then submit the inquiry form. An engineer from astronwireless.com will respond within one business day.
